Larsen iceshelf: iceshelf partial disintegration & iceberg calving

In Austral summer 94/95 the ice shelf around James Ross Island disintegrated and parts of the Larsen ice shelf calved. This page shows some pictures and associated material.

This is not the page about the Ronne calving event, which is different! Nor is about the most recent giant Ross berg: see for that [23/03/2000].

If you want to read what the BBC has to say in their news report from late January 1998 (not a good idea; its somewhat misleading), see here.

Before After On 27/2/95

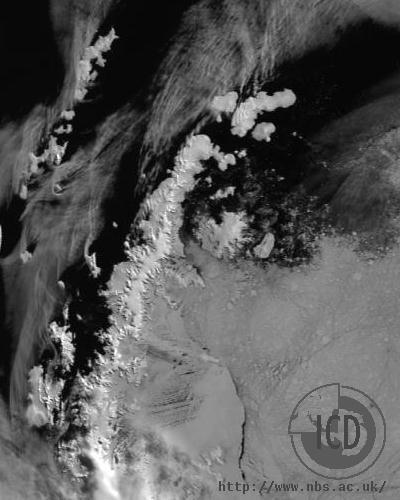

The "before" picture is taken at 11 GMT, 9/Jan/95. It is before the iceberg calved, but after the iceshelf between James Ross Island and the peninsula disintegrated. James Ross Island is the spidery-shaped island slightly above left of the center of the "before" image.

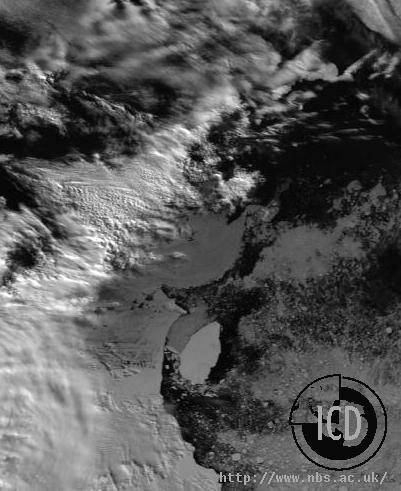

The "after" is from 12 GMT, 12/Feb/1995. In this picture the iceberg has calved but has not moved far from where it was calved.

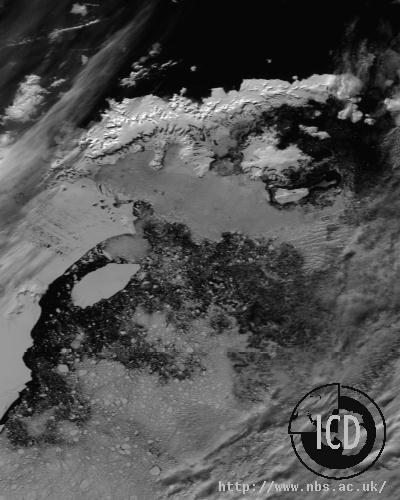

The 27-2-95 image is 15 days later. A segment of the ice shelf has broken up and is visible as a plume about 4 times as long as the iceberg.

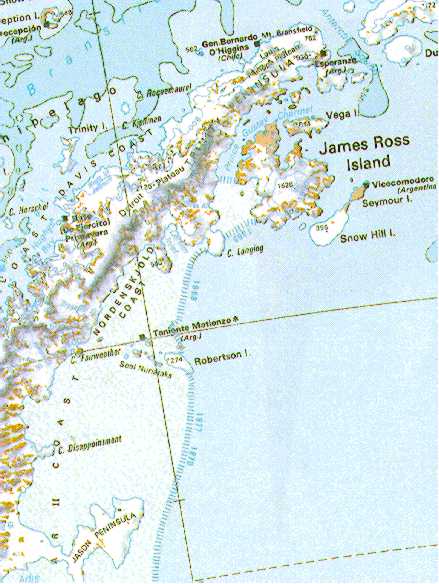

All images are from near-visible channels and were provided by the ARIES hrpt receiver at Rothera research station. A map of the northern peninsula region is available.

A note on image quality: these images have been resampled to a somewhat lower resolution, and the colour tables have been adjusted, compared to the originals. This should be fine for general use. If you are interested in the originals for research pruposes, please contact Tom Lachlan-Cope.

I have a further picture from 30th April 1995 but its not that informative.

Thanks to: Tom Lachlan-Cope/Russ Ladkin for the images, Dave Vaughan/Rob Willan for the map.

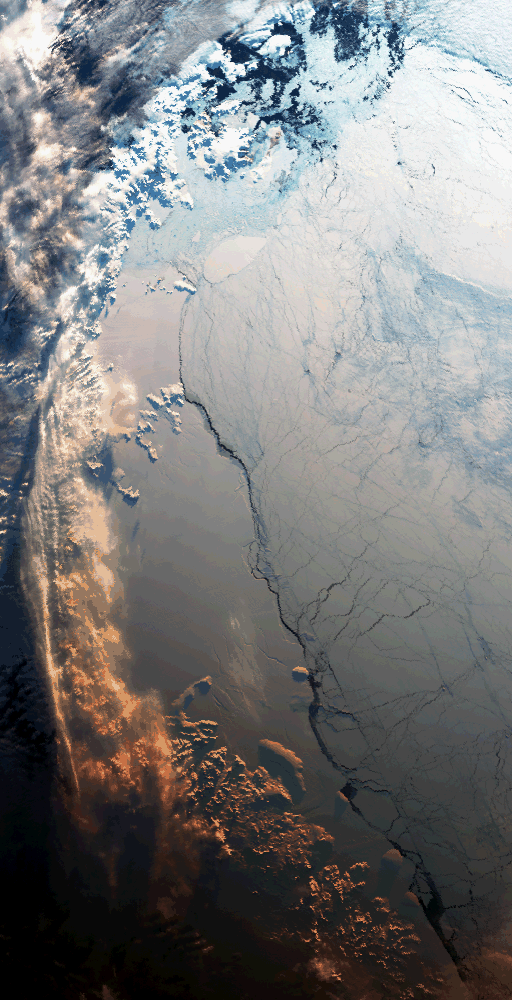

The ATSR people at RAL had an image from 30/04/1995 at The image is really rather nice. Fortunately I took a local copy of the image.

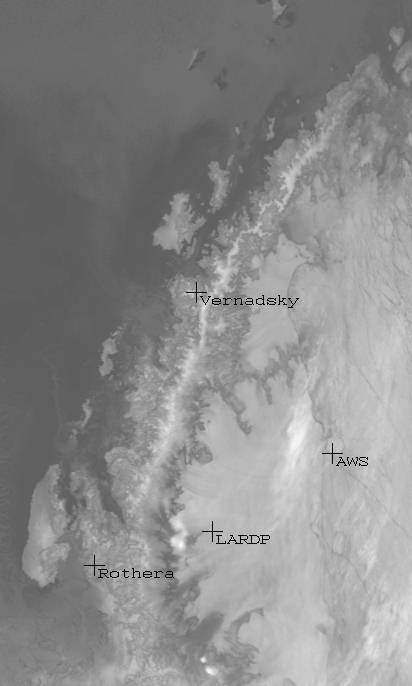

In July 1996 a further (smaller) berg, approximately 50 km long (the size of Rutland, we are calling this one), calved from further south, on the "main" Larsen ice shelf. In this picture the spine of the Antarctic Peninsula curves from bottom right to top left. The main Larsen ice shelf occupies the center of the picture and is delineated towards the top right by the dark band of the shore lead. The positions of two research stations are marked. The berg itself is visible in the upper center as a broken off chunk and corresponding "hole" in the ice shelf.

The picture is infra-red channel 4 from a NOAA satellite retreived at Rothera station at 8:24 GMT on 8/7/96. The northern (top) limit of this picture roughly corresponds to the southern limit of the previous pictures.

Thanks to: Tom Lachlan-Cope/Wookie/Frank Hindle for the image.

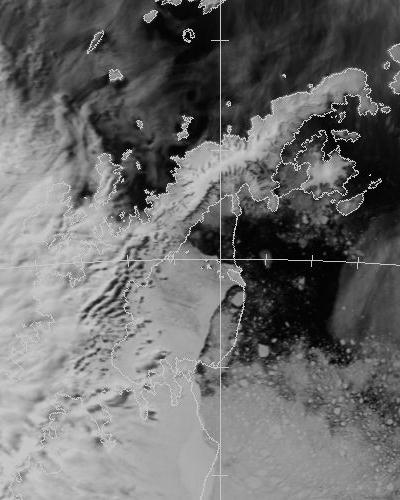

In 1997 not a lot has happened, except that Greenpeace has generated a lot of interest in the topic (and our hit count has shot up!). This clipped image from 25th January 1997 (36k) shows the scene and has 65 oS and 60 oW lat-long lines added for ease of navigation. It also has the old coastline on, which is kind of fun.


Doake et al. published a paper in Nature (19/2/1998) suggesting that a smallish further retreat of the Larsen B would signal its rapid collapse.

Ted Scambos has now suggested that this slight further retreat is ocurring: "Breakup of Larsen B Ice Shelf May Be Underway".

We have some more pictures from December 1997.


Two piccies of the area:

400x400 & 800x800200k; 1000x1000

Thanks to Russ Ladkin/John Turner for the images.

More Larsen breakup seems to be underway...

  1. Breakup of the Larsen B Ice Shelf February 15,1998 - March 18, 1999 and AVHRR Images of Antarctic Ice Shelves by Ted Scambos and Jennifer Bohlander
  2. - [link now broken, I hate it when people don't maintain their content] - Antarctic ice shelves said breaking up fast by abc news

A rather blurred report appeared on Lycos.

August 1999 [click for larger image]; thanks to Russ Ladkin for the image:


Happy new millennium to the Larsen...

Two piccies:

Images suplied by Russ Ladkin / Rothera Met.

Here is another one.


BAS press release on the Larsen B collapse.


Nearly at the end of 2003 but here is a story about Larsen-C thinning:,13993,1074718,00.html.


Related material/Links

If you care to, you can read the "official" BAS/ICD statement Antarctic climate change - a position statement by the British Antarctic Survey.

Ted Scambos and Christina Hulbe have put together a nice page entitled Recent Events in the Northern Larsen Ice Shelf and Their Importance. CH has written an article in a web magazine: RECENT CHANGES TO ANTARCTIC PENINSULA ICE SHELVES: WHAT LESSONS HAVE WE LEARNED?. A somewhat alternative viewpoint is provided by Greenpeace. [I should point out that inclusion of a link on this page does not imply endorsement of the views contained therein...] Perhaps you'd like to see what the "Meeja" are making of all this... try a transcript with piccies of The News Hour with Jim Lehrer from March 6 1997. It has some nice typos (penguins being attacked by "marauding skewers") and some science too. Thanks to Christina Hulbe for pointing this reference out on the IGS.

Antarctic meteorology is available from Metlog at BAS; composite Antarctic satellite pics are available from

Two images similar to the first two above have appeared in Nature (??when??). A related issue, the disintegration of the Wordie iceshelf, was covered by: Doake, C.S.M. and D.G. Vaughan. 1991. Rapid disintegration of Wordie Ice Shelf in response to atmospheric warming. Nature 350(6316), 328-330.

A slightly wider context comes from Recent atmospheric warming and retreat of ice shelves on the Antarctic Peninsula by D. Vaughan and C. Doake, Nature, 1996, v379 p328. This shows changes (mostly decreases) in a number of ice shelves on the Peninsula.

A detailed examination of the Larsen breakup, including SAR imagery, appears as Rapid Collapse of the Northern Larsen Ice Shelf, Antarctica, by Rott,H; Skvarra, P and Nagler,T in Science, 1996, v271, p788. An accompanying comment article, An Ice Shelf Breakup by Mark Fahnestock is on p775 of the same issue.

The American Chemical Society has an article entitled "Climate Observations Substantiate Global Warming Models" with a side-shoot titled "Higher temperatures in Antarctica have led to disintegration of some ice shelves".

More information on Antarctic temperature trends can be found from Gareth Marshall's pages.

A note on naming of icebergs is available.

The official version of the British Antarctic Survey Press Release 1/95 27 February used to live at but now they've moved it, I hate it when they do that.
